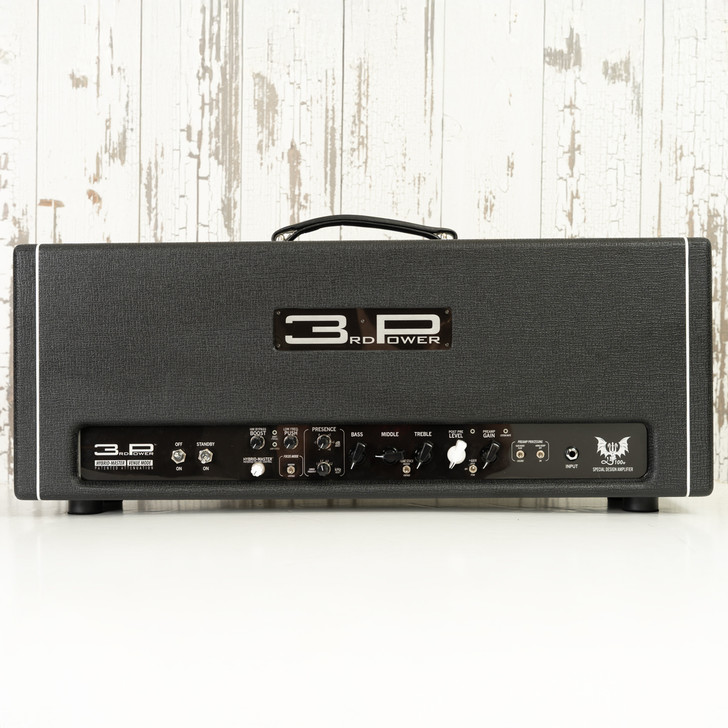

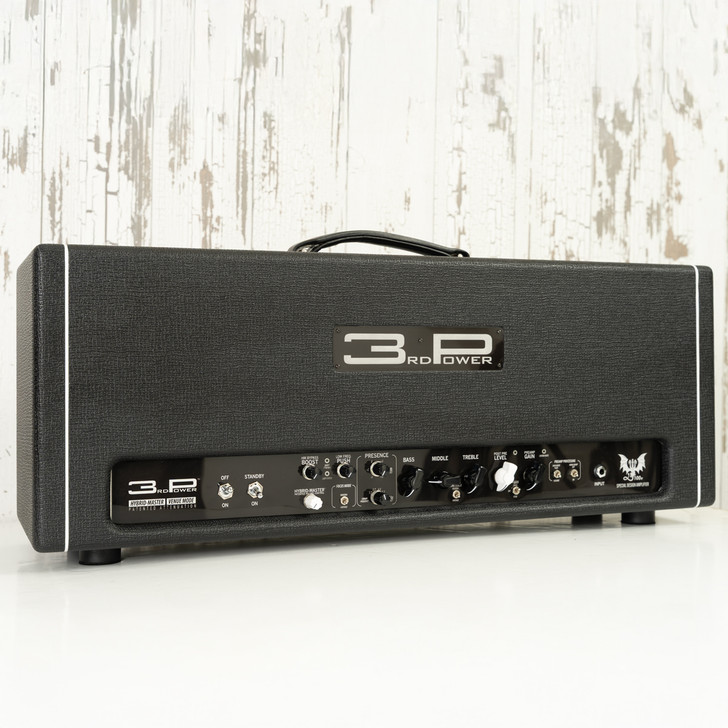

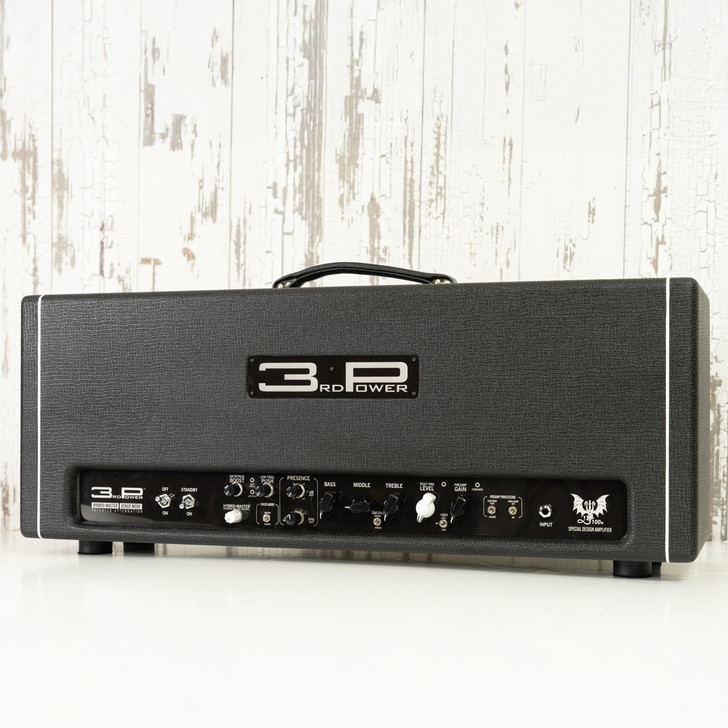

SPECIAL DESIGN DRGN 100 AMPLIFIER is a vintage inspired, modern featured amplifier designed in collaboration with Joe Satriani and 3rd Power’s Dylana Scott. Its vintage inspiration comes from the legendary 1967/1968 Plexi Super Lead 100. Its modern features come from the vast combined knowledge and experience of Joe and Dylana.
Craft Your Tone
The DRGN 100 features innovative tone-crafting features such as: Plexi/Cascade Preamp Modes, 400Hz Boost, Vintage/Modern Tone Stacks, Ultra Presence (4 Switchable High-Frequency Shelf settings), Low Freq. Push, Vintage/Focus Power Amp Modes.

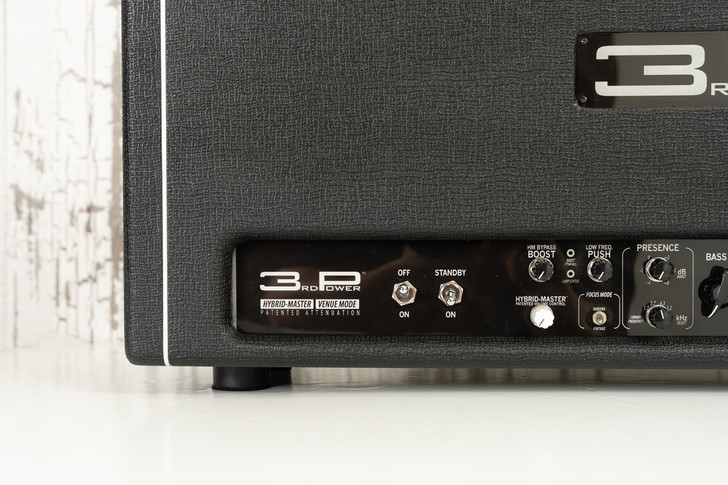

HybridMASTER™ Volume Control
The HybridMASTER™ control is located on the front panel giving you the confidence to play what you feel when you feel it at exactly the volume you need for the occasion. Not a power-scale or power soak, HybridMASTER simultaneously controls the volume, limits the DC current and regulates the DC plate voltage of the tube circuitry to deliver your desired tone at any volume setting that’s right for the room. Our patented HybridMASTER is volume management executed to perfection!
Features of the DRGN 100 amplifier include:
• Quad EL34 Output Tubes for 100W of Power
• British Voiced Plexi & Cascaded High Gain Preamp Section (switchable)
• Switchable 400Hz Boost fattens and shapes unwound treble strings
• Dual-mode 3-Band EQ (JTM/JMP – switchable)
• Tube Buffered FX Loop (foot-switchable)
• Preamp Gain Boost (foot-switchable)
• Ultra-Presence High Frequency Shelving Filter: (1.7, 3.7, 4.3 and 5.2kHz corner frequencies)
• Switchable FOCUS mode (vintage or mid-forward for more vocal-like lead tones)
• Foot Switchable MUSICAL SILENT MUTE (FX tails finish their cycle before amp goes silent)
• HybridMaster™ Volume Management Technology (3P Patented)
• Back-panel Bias Test Points and Adjustment Pot
• Custom Wound USA-made Power & Output Transformers by Heyboer
• 4 Button Pro Foot Switch & 7 Pin Cable (included)
• Hand-wired and Hand Built in Minneapolis, MN
• Limited Lifetime Warranty
