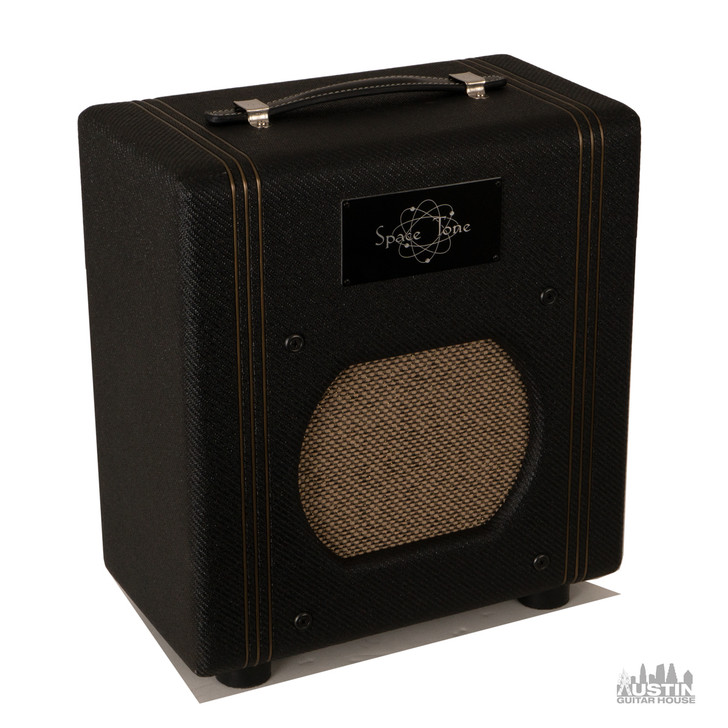

Space Tone Atomic JR.
The Space Tone ATOMIC JR is the famed ST-6V6se with a dedicated triode reverb stage utilizing the 12DW7 fed into a spring tank for amazing reverb emanating from this little 14lb beast. The circuit remains uber simple for the best touch sensitivity, tone, and responsiveness. Like all Swart Circuits, it Includes Tube rectification utilizing the GZ-34 or NOS 5Y3. Features volume, tone, and "Space" control. .
There is a cool switchable gain option in place of the 6V6se feedback switch. When in circuit, the amp has more cleans and take a bit longer to break-up. It's a slightly more controlled result. Flip it out of circuit and you have slightly less compression with a more raw take, quicker to get into the fun stuff.
Specifications:
- 5W CLASS A b
- Single-Ended Output - Zero Negative Feedback
- 100% Tube Circuit - GZ34
- Tube Reverb via 12DW7 & Spring Tank
- Hot and Clean mode Switch
- Powered by choice of 6V6 or 6L6 (ships w/6V6)
- JJ 12AX7 - JJ 12DW7 - JJ 6V6GT - JJ GZ34 Rectifier
- Point to Point Hand Wired Circuit
- Cathode Biased (no need to bias)
- Carbon Comp Resistors ~ Mallory Caps
- Cloth Hook-Up Wire
- Heaters referenced to ground
- Star Grounding
- 4 ohm 1/4" Out - Drive other Speaker/Cabinet
- Switchcraft 1/4 inch input and output
- CTS Potentiometers
- Custom High Quality USA Built Swart Spec Iron
- Speaker: 8" Weber Signature Smooth Cone ~ 4 ohm
- Finger-Jointed, solid Pine Cab w/ Lacquer Tweed Cover
- Vintage Jewel Lamp ~ Circuit Fuse Protected
- Dimensions: 13 3/4T x 13W x 7 1/4 D
- Weight: 14lbs
