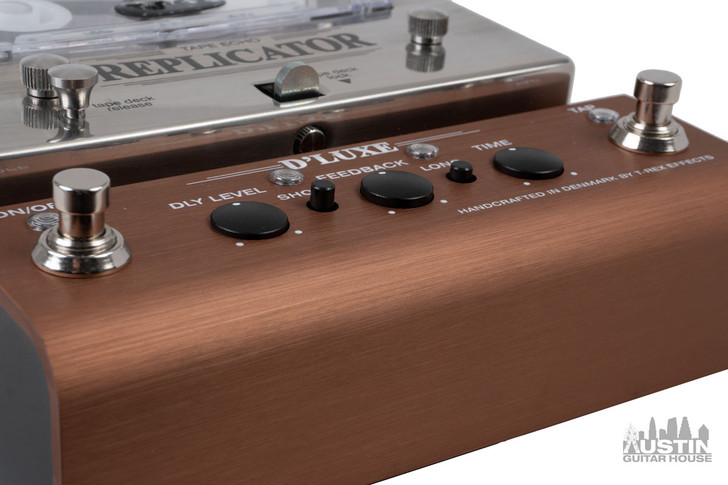

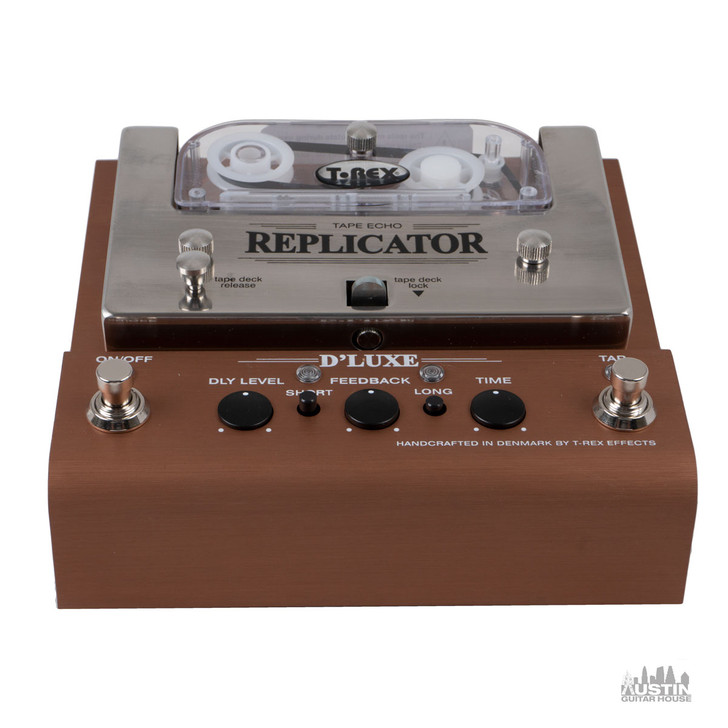

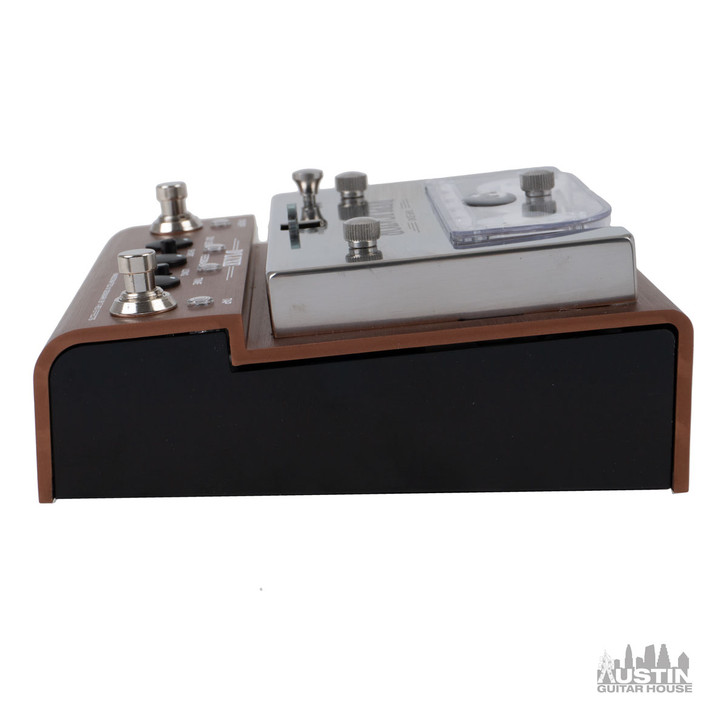

The Replicator D’Luxe is a sum up from all the knowledge that the T-Rex design team have built up over the years, making tape delays. It is a 2 head machine. The drive mechanism has been updated with a noiseless belt drive. A tape lock/release mechanism is added, to make the pinch wheel and tape last longer and electronics has been tuned to perfection.
Multiple Playback-heads for true analog tape echoes
One Record head and two playback heads. Short Head for slap back delay. Long head for longer modern delays, or combine both heads for a semi Delay-Room experience
Delay time Short head =108 – 520mS. Delay time long head = 215 – 1000 mS
Tap tempo for Long Head and half the time for the short head
True Bypass switching with a gold plated relay
New motor suspension with belt drive, for reduced noise operation
New Tape deck lock-mechanics to protect pinch roller and tape for longer life span
All analog signal path from input to output
Power supply with exchangeable blades 90-240 Volt, and an extra tape cartridge included
Input Impedance: @ 1KHz > 500K ohm
Output Impedance: @ 1KHz >1K ohm
Power Supply (included): 12V DC, center negative
Current Draw: @ 12V DC 300mA
Maximum Input Signal: V p-p 8,7V p-p (12dBu)

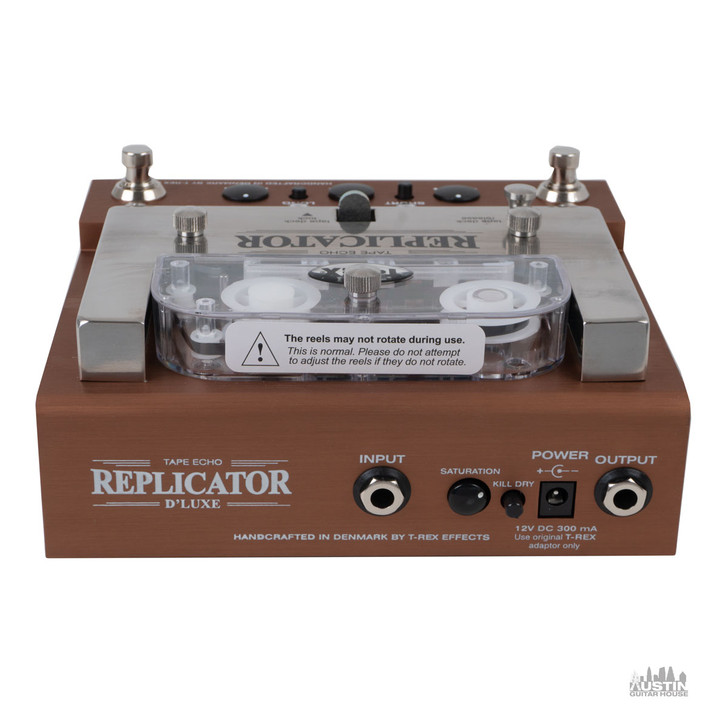

External Connectors: input, output, DC inlet
Controls: delay time, feedback, delay level, saturation, kill dry, short, long, on/off, tap tempo
Pedal Size Incl. Knobs: (W x H x D) 3.25" x 7" x 7"
Weight: 3lbs
