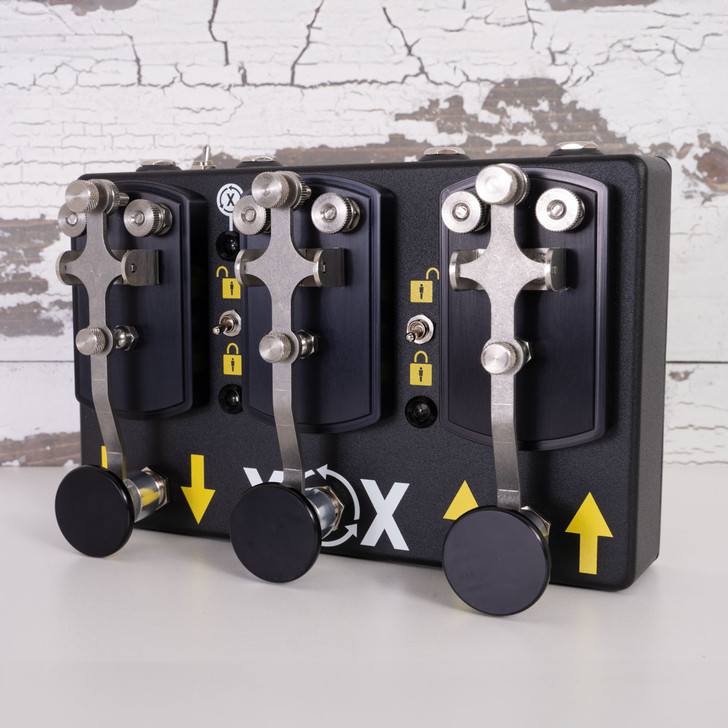

The Triplegraph is a digital octave pedal designed by CopperSound Pedals and Jack White, featuring three proprietary telegraph keys and an integrated auxiliary loop. Utilizing a high-power DSP Blackfin Processor, Triplegraph triggers an octave down with the left key, octave up with the right key, while the middle key activates a killswitch or auxiliary loop. In KILL mode, the middle key acts as a momentary killswitch, allowing the player to remove their dry signal and attain a fully wet octave up and/or down when used in conjunction with the octave keys. In AUXILIARY mode, the player can connect one or more of their favorite effects in parallel with the octaves via the send/return jacks, and trigger them in momentary bursts.
The high and low octaves can be triggered in parallel with the dry signal when the octave keys are pressed independently. The octaves track seamlessly and can be triggered in latching or momentary modes, using CopperSounds's “Loctave” toggle switches. The telegraph keys themselves are composed of custom stainless steel and aluminum components, making them indestructible and exceedingly durable for both hand and foot operation. Over four years in the making, the collaborative result is an innovative, state of the art clean-tracking octave pedal, capable of standing its own against industry standards.
Power & Consumption
2.1 x 5.5 Center Negative
9V Operation Only
9V = 250mA

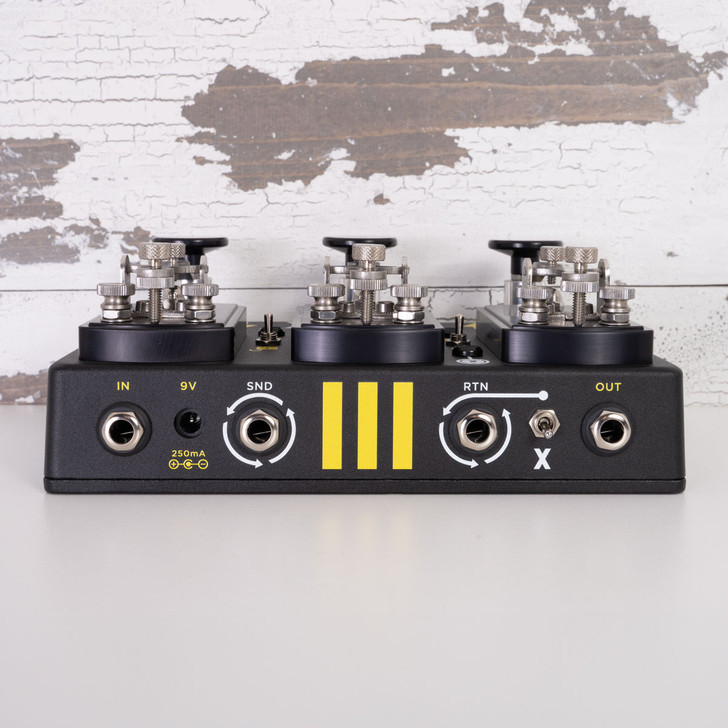

I/O
In/Out = 1/4” Instrument Cable
SND/RTN = 1/4” 1/4” Instrument Cable
