AUSTIN GUITAR HOUSE IS A PROUD DEALER OF
Jam has always prided themselves on refining and delivering the iconictones of early 80s distortion boxes with their Rattler. Now, the snake has shed its old skin to usher in a new era of decadent saturation! Incorporating a custom-designed discrete component op-amp that maintains all the beloved characteristics of the original, adding a custom-voiced mid boost, and introducing a second clipping option, the new Rattler is here to claim a forever spot on your board.
Custom op-amp: With the LM308 chips being long discontinued and hard to find, Jam developed a custom op-amp to ensure a dependable supply. Their proprietary design, featuring discrete components, preserves the open, dynamic, and tube-amp feel that made the original Rattler so revered.
Clipping Options: Choose between new symmetrical and original asymmetrical clipping options for distinct feel and saturation profiles.
Mid Boost Footswitch: Use the second footswitch to engage a mid boost before the Rattler, adding new dimensions to your tone. Don’t think of this as a volume boost but as a tone enhancer!

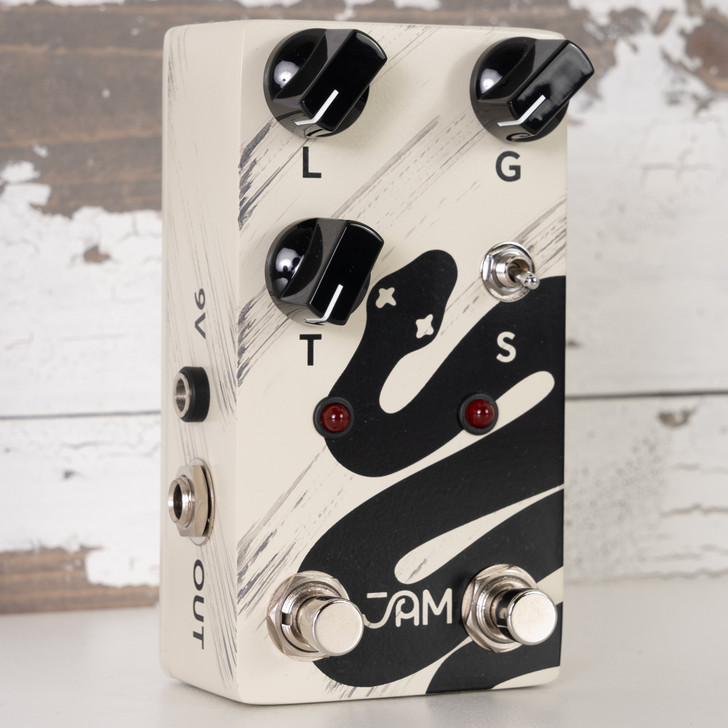

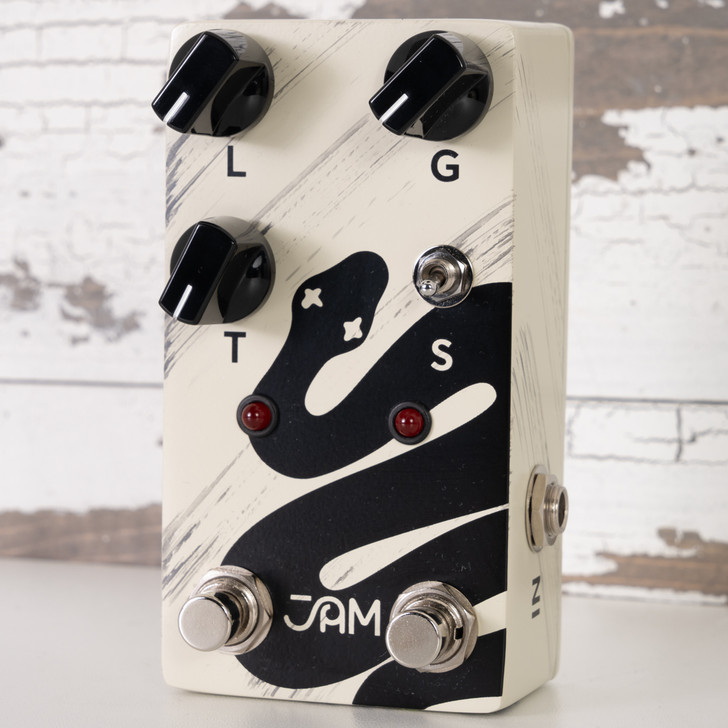

KNOBS:
L:Output Level
G:Gain
T:Tone
TOGGLE-SWITCH
Top: Asymmetrical Clipping
Bottom: Symmetrical Clipping
FOOTSWITCHES:
Right:Turns the Rattler ON / OFF
Left:Turns the Boost ON / OFF
JACKS:
IN: Input
OUT:Output
9V:9V DC power (tip-negative) Power consumption: 95 mA
INTERNAL CONTROLS:
Internal Trimmer: Controls the boost output (factory setting:maximum)
Internal Dip Switch:
↓ Applies a low cut to the Boost side (also the factory setting reducing low end and tightening the sound.
↑ Low end passes through when Boost is engaged.
