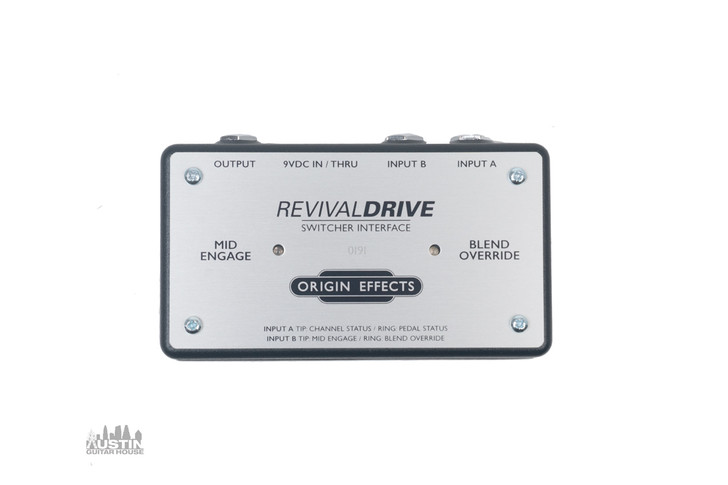

Origin RevivalDrive Switcher Interface

TAKE CONTROL

Take full control of RevivalDRIVE by combining the Switcher Interface with your existing remote switching system. RevivalDRIVE Switcher Interface allows a remote switching system such as the GigRig G2 or Boss ES-8 to remotely toggle the Active Channel, Bypass state, Mid engage and Blend override functions.

  • Maximise integration with a remote switcher.
  • Compatible with RevivalDRIVE, RevivalDRIVE Custom and Hot Rod pedals.
  • Tour grade, all metal construction.
  • Designed and built in England.

TOTAL RECALL

Using the Switcher Interface it is possible to remotely toggle the active Channel, Bypass state, Mid Engage, and Blend Override functions. This allows a user to instantly recall presets with different combinations of Channels, Mid Boosts, Blended Overdrive, or even bypass the effect entirely.

SIMPLE INTEGRATION

The Switcher Interface allows the four functions to be remotely switched via the single TRS footswitch connection on the RevivalDRIVE. The unit works by converting the four latching control switches from a remote switcher, such as GigRig G2 or Boss ES-8, to the  proprietary control signals used by the RevivalDRIVE.

SPECIFICATIONS:

  • Weight: 184 g (0.41 lb)
  • Dimensions: 115 x 65 x 35 mm (4.53 x 2.56 x 1.38 in.)
  • Current Draw: 5 mA
  • Power Supply: 9V DC 2.1 mm centre-negative
